Building My First Multiboot Toy Kernel (x86, C + Assembly)

TL;DR

I built a 32-bit freestanding toy kernel that:

boots via GRUB using a valid Multiboot header
jumps from assembly into C (kernel_main)
writes directly to VGA text memory (0xB8000)
sets up a minimal GDT (null, code, data)
installs IDT entries for CPU exceptions (0-31)
routes exceptions through common ISR stubs into a C panic path

This is not a full OS yet, but the bring-up foundation is solid.

Why I Started

I wanted to understand boot flow at a lower level than normal app dev: from bootloader handoff all the way to my own interrupt/exception handling path.

Target + Stack

Architecture: x86 (32-bit protected mode)
Bootloader: GRUB + Multiboot
Language: C (freestanding) + NASM assembly
Emulator: QEMU

Current Project Files

boot.s -> Multiboot header + _start
linker.ld -> load address + segment permissions
Makefile -> freestanding build + ISO pipeline
kernel.c -> kernel entry, VGA output, panic, exception display
gdt.h, gdt.c, gdt.s -> GDT setup + flush/reload segments
idt.h, idt.c -> IDT structs + gate installation
isr.s -> exception ISR stubs (0-31)
grub.cfg -> GRUB menu entry

Boot Pipeline

1) GRUB loads kernel

grub.cfg:

multiboot /boot/kernel.bin
boot

2) `_start` in assembly

In boot.s:

disable interrupts (cli)
initialize stack (esp = stack_top)
pass Multiboot values from registers to C
call kernel_main

3) Freestanding kernel build

The Makefile uses kernel-safe flags:

-ffreestanding
-m32
no PIE/PIC
no stack protector
-nostdlib

Then builds kernel.bin and packs it into myos.iso using grub-mkrescue.

4) Runtime path in C

In kernel_main:

validate multiboot magic
print boot status to VGA
initialize GDT
initialize IDT
trigger int $0 test
route through ISR common stub -> C exception handler -> panic

Subsystems Implemented

VGA output

Simple text writes to 0xB8000 for status and panic info.

GDT

Minimal 3-entry table:

null descriptor
kernel code segment (0x08)
kernel data segment (0x10)

gdt_flush:

lgdt
reload ds/es/fs/gs/ss = 0x10
far jump to reload cs = 0x08

IDT

zero init all 256 entries
installs exception handlers for vectors 0..31
lidt the table

ISR + Panic

isr.s common stub:

saves registers/segments
normalizes stack for handler
calls isr_handler(struct interrupt_frame*)
restores context and iret

kernel.c handler:

maps int_no to exception names
prints exception context message
enters panic halt loop

Debugging Milestones I Hit

Section placement issues

Early interrupt stub placement caused bad control flow. Keeping handlers in executable .text fixed this.

Linking/model issues

Hosted defaults caused bad kernel assumptions. Freestanding + linker cleanup made behavior predictable.

Triple-fault style resets

Bad selector/state setup caused reset-like behavior. Fixing selector usage first, then owning GDT state, stabilized execution.

Lack of observability

Before common ISR flow, faults were hard to reason about. Unified interrupt frame + panic output made faults visible.

Current Runtime Behavior

On boot:

kernel status message prints
multiboot handoff is verified
GDT is initialized
IDT is initialized
test int $0 fires intentionally
exception path displays and halts cleanly

Timeline Highlights (Feb 15-24, 2026)

initial boot skeleton + docs
linker script + GRUB config
first IDT wiring
test ISR0 path
build/link corrections
multiboot handoff hardening
full exception handling pipeline
own GDT setup integrated

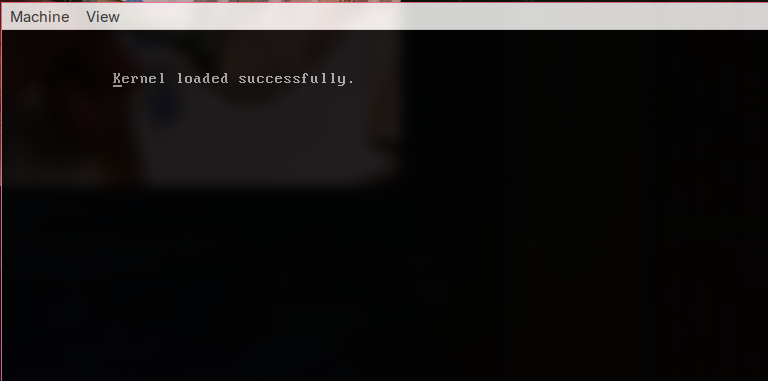

Screenshots

Next Work

PIC remap (8259)
IRQ handlers (timer, keyboard)
better terminal layer (newlines/scroll)
serial logging for headless debugging
physical memory manager groundwork

Repro

cd /home/welsh/kernel
make clean
make
make run

Multiboot check:

grub-file --is-x86-multiboot kernel.bin && echo "multiboot ok"
